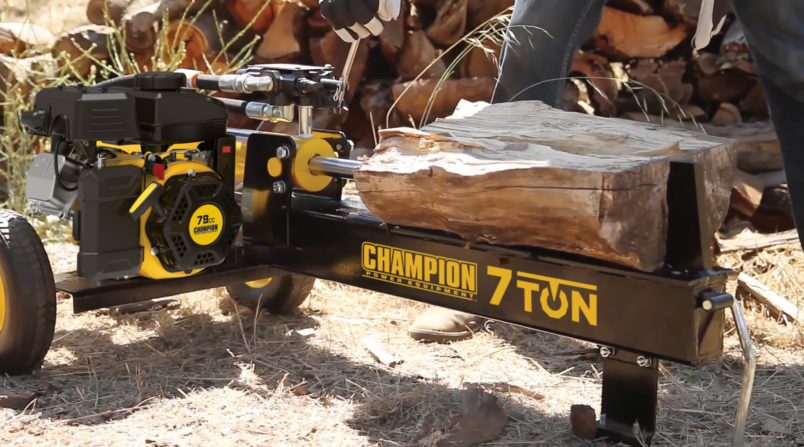

Champion’s 7-ton log splitter features an integrated log cradle and low profile for easy loading. The 79cc engine easily powers through logs up to 19 inches in length and 50 lb. in weight. The 20-second cycle time and auto-return valve reduce work time, while the skewed wedge improves efficiency.

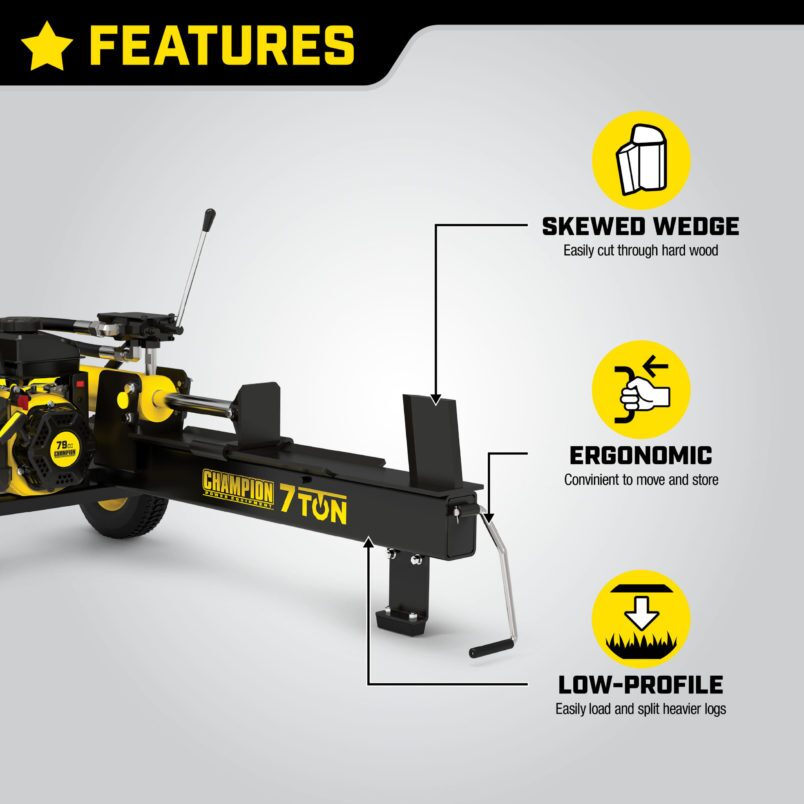

Features
Dependable
The 79cc engine powers a 20-second cycle time and dependable auto-return valve, making this log splitter capable of 180 cycles per hour
Low-Profile
Smart low-profile design makes it easier to load heavier logs, while the integrated log cradle keeps them in place
Efficient
The skewed wedge improves splitting efficiency
Portable
The compact design, comfortable handle and never-flat tires make this log splitter easy to move and easy to store
Reliable
Champion Support includes 2-year limited warranty with FREE lifetime technical support from dedicated experts
Description

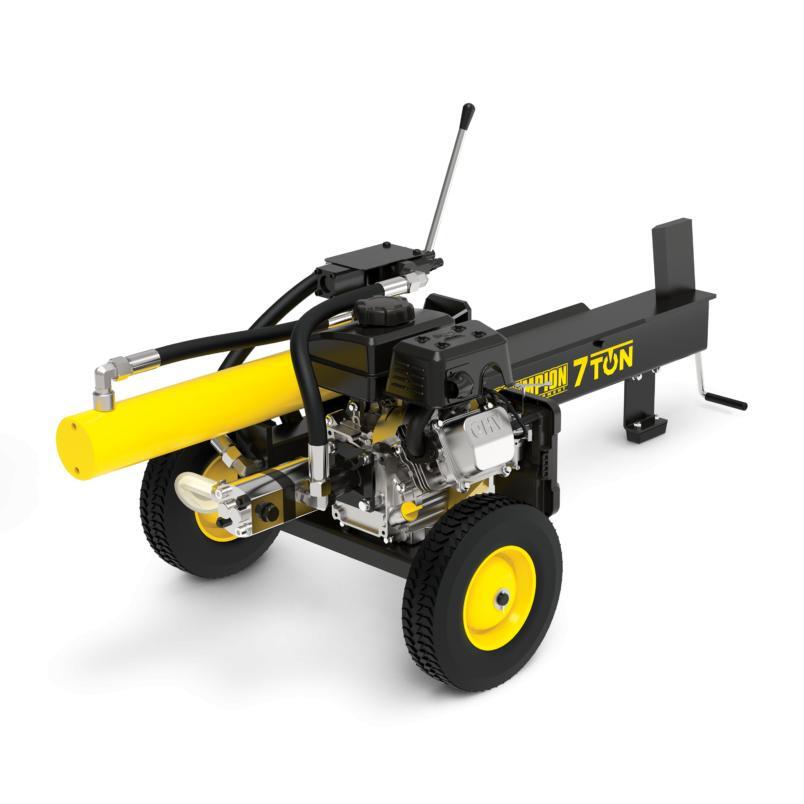

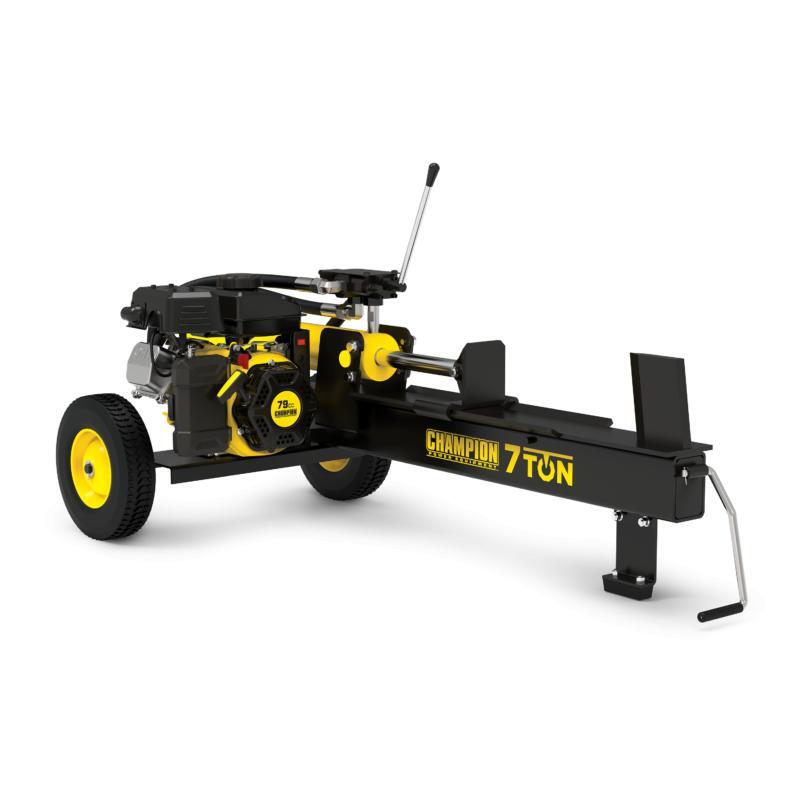

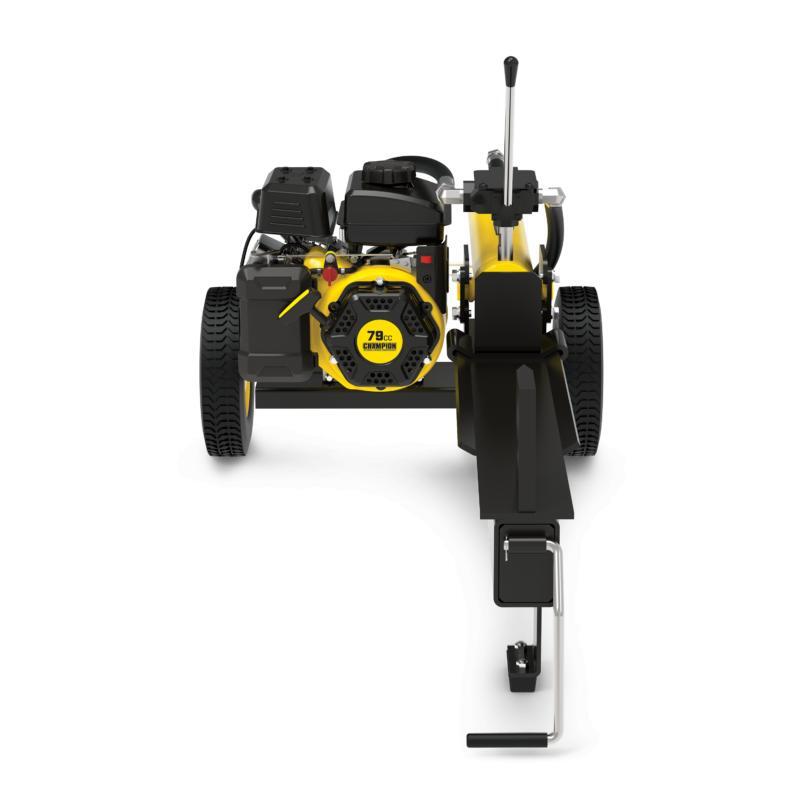

The Champion Power Equipment 90720 7-Ton Horizontal Gas Log Splitter is small on size but big on power. If you’re looking for a quick, dependable and portable solution for log splitting, this is the unit for you.
Depend on the reliable recoil start to start up the powerful Champion 79cc single-cylinder OHV engine, which features a cast-iron sleeve, a 0.3-gallon fuel tank, 0.4-quart oil capacity (recommended 10W-30) and a low-oil shutoff for safety.

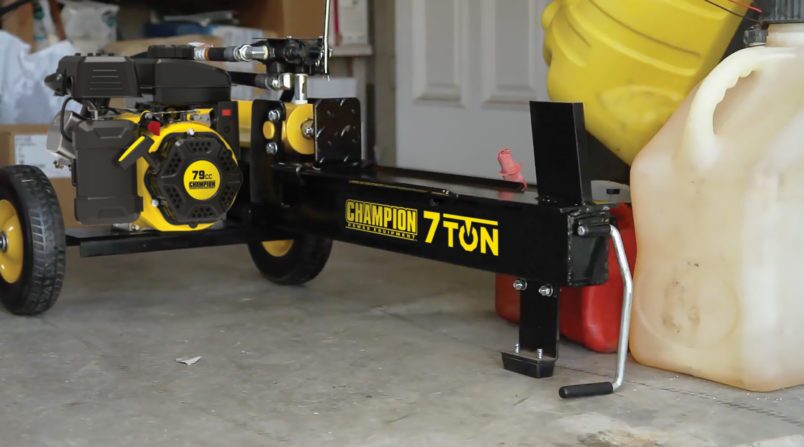

Never struggle to lift a large, heavy log onto your log splitter again. The low-profile design makes it much easier to load a large log onto the splitting beam, and the integrated log cradle keeps the log safely in position. This small but mighty machine handles logs up to 19 inches long, weighing up to 50 pounds.

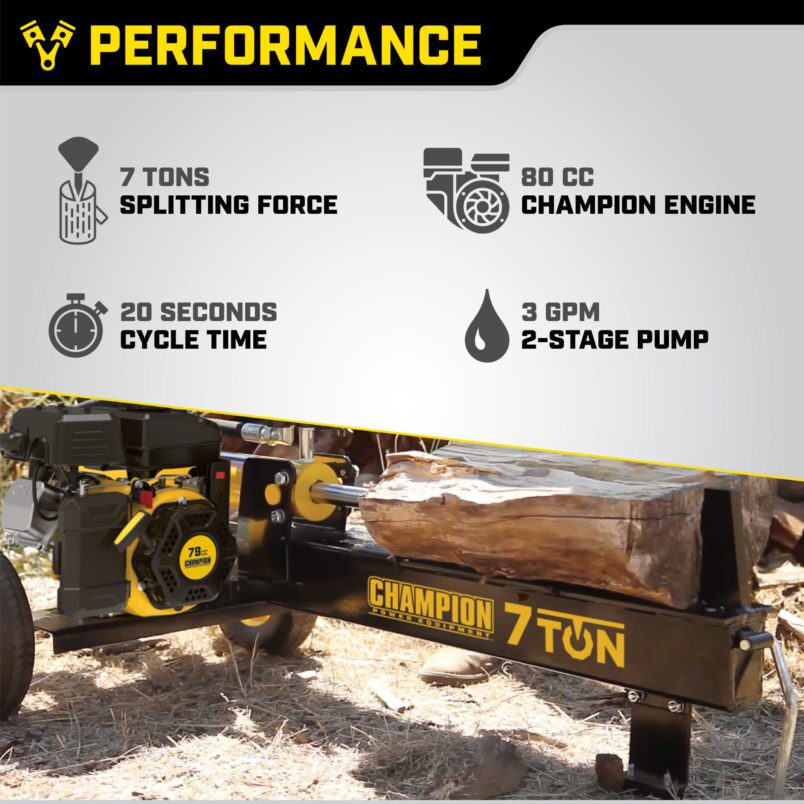

Seven tons of splitting capacity deliver the power you need for the job at hand. The hydraulic oil system has a 1.5-gallon oil capacity and operates at 3 gpm to power through tough logs.
Champion designed this log splitter with a skewed wedge to increase splitting efficiency, plus it has a 20-second cycle time and dependable auto-return valve, which is capable of 180 cycles per hour.
The 2-stage gear pump reliably adjusts flow and pressure by delivering high flow/low pressure when there is no resistance and low flow/high pressure when cutting through a log to increase productivity.
This log splitter will fit easily in any truck bed, plus it’s easy to move from one job to the next with the comfortable handle and 10-inch never-flat tires.
Assembly and setup are hassle free with Champion’s clear directions and thoughtful packaging.
This log splitter is EPA certified and CARB compliant. Buy with confidence - our reliable support and network of service centers will back your purchase up with a 2-year limited warranty and FREE lifetime technical support.
What’s included
- Oil Funnel
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Specifications
| Ram Force | 7-ton |
|---|---|
| Operating Position | Horizontal |
| Cycle Time | 20 s. |
| Max Log Length | 19.3 in. |
| Max Log Weight | 50 lb. |
| Log Cradles | Yes |
| Log Catchers | No |
| Auto Return | Yes |
| Wedge Type | Single |
| Wedge Material | Hardened Steel |
| Cylinder Diameter | 3 in. |
| Cylinder Rod Size | 1.2 in. |
| Hydraulic Pump | 2-Stage |
| Hydraulic Flow Rate | 3 gal/min |
| Hydraulic Oil System Capacity | 1.5 gal. |
| Hydraulic Oil Tank Capacity | 1 gal. |
| Hydraulic Oil Type | ISO 32, AW 32, Automatic Transmission Fluid |
| Hydraulic Filter | No |
| Hydraulic Oil Included | No |
| Power Type | Gasoline |
| Start Type | Recoil |
| Engine Brand | Champion |
| Engine Size | 80cc |
| Engine Type | 4-stroke |
| Gasoline Capacity | 0.3 gal. |
| Engine Oil Type | 10W-30 |
| Engine Oil Capacity | 0.4 qt. |
| Engine Oil Included | No |
| Low Oil Shut-Off | Yes |
| Wheels | Yes |
| Wheel Type | Solid |
| Wheel Diameter | 10 in. |
| Towable | No |
| Fenders | No |
| EPA Certified | Yes |
| CARB Compliant | Yes |
Dimensions
| Length | 53.1 in. |
|---|---|
| Width | 23.6 in. |
| Height | 18.1 in. |
| Weight | 148 lb. |
