Champion’s RV Ready Open Frame Inverter is 50% quieter and 20% lighter than a traditional 3500-watt generator and features CO Shield® carbon monoxide auto shutoff system. Our advanced feature-packed power solution includes Quiet Technology, Extended Run Time, Economy Mode and Clean Power, plus you can easily increase your power with the optional Parallel Kit.

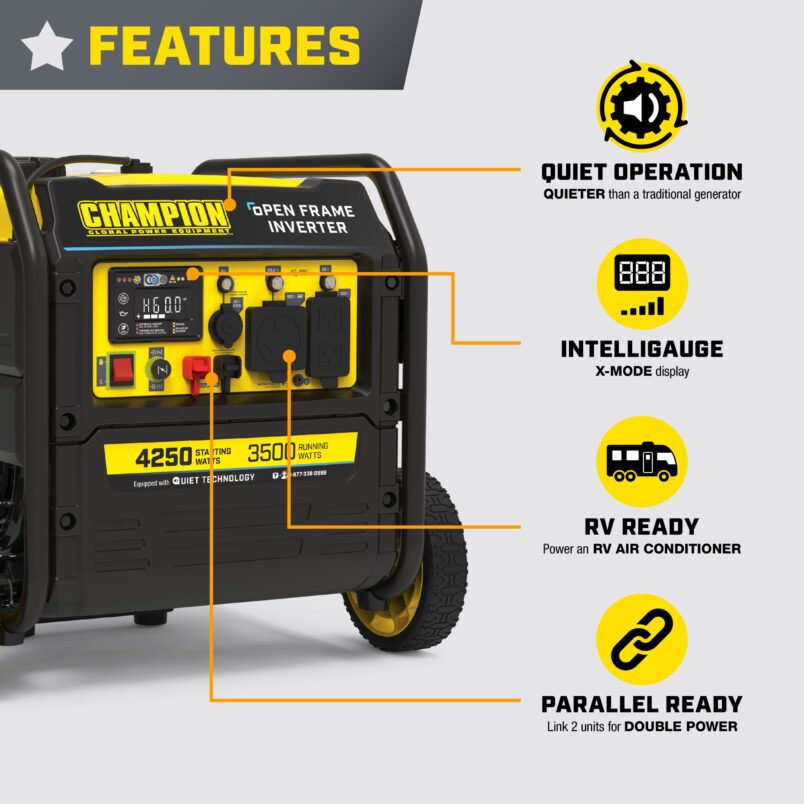

Features
Advanced Design
50% quieter and 20% lighter than a traditional 3500-watt generator, plus features CO Shield® carbon monoxide auto shutoff system
Quiet Technology and Extended Run Time
64 dBA is great for RVs, tailgating, your next project or home backup, with 4250 starting watts and 3500 running watts for up to 22 hours run time on gasoline
Clean electricity for sensitive electronics
RV Ready with a 120V 29.2A RV, a 120V 20A household duplex outlet with clean power (less than 3% THD), plus a 12V automotive-style outlet.
Parallel Ready
The optional, sold-separately parallel kit enables this inverter to connect with another Parallel Ready Champion Inverter or Power Station for more power and longer run time
Champion Support
Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts
Description

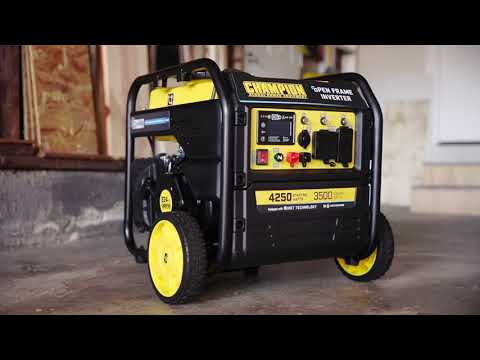

The Champion Power Equipment 4250-Watt Open Frame Inverter Generator with CO Shield® is one of the most innovative products on the market. Our advanced technology and innovative design will improve the way you power your life.
First, we cut the noise level in half by integrating Quiet Technology digital components used in more advanced inverters. Then, we created an efficient mechanical design to decrease the overall footprint and weight by 20 percent. A quiet, lightweight addition to your RV and a cost-effective power solution, this Open Frame Inverter is smaller, quieter, lighter…BETTER!
Champion’s recoil start features Cold Start Technology, plus the reliable 224cc Champion engine produces 4250 starting watts and 3500 running watts, and runs for 22 hours at 25% load when the 4-gallon fuel tank is full.
With a 0.5-quart oil capacity (included 10W-30) and a low oil shut-off sensor, this inverter operates at 64 dBA from 23 feet, which is a bit louder than normal speech.
Confidently connect your sensitive electronics since this inverter produces Clean Power (less than 3% THD).

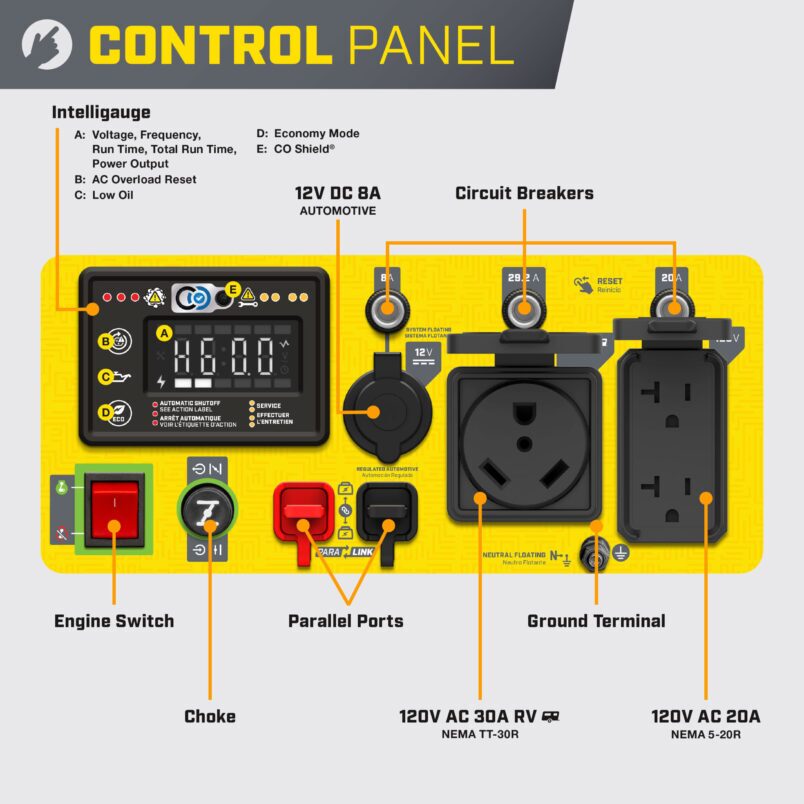

Our Quick Touch Panel offers fast access to all your controls. The Intelligauge with Power Meter monitors voltage, frequency and operating hours with ease, while Economy Mode monitors power consumption in real time to reduce electrical load. As the electrical load is reduced, the engine idles lower, providing quieter operation, extended engine life and higher fuel economy.
The covered outlets in this RV Ready inverter include a 120V 29.2A RV (TT-30R), a 120V 20A household duplex outlet (5-20R) plus a 12V automotive-style outlet.
The optional Parallel Kit (sold separately), with included standard 50-amp RV outlet, provides a clip-on connection which allows you to connect with another Parallel Ready Champion Inverter or Power Station for more power and longer run time.
Buy this fully assembled EPA certified generator with confidence – Champion Support and our nationwide network of service centers will back up your purchase with a 3-year limited warranty and FREE lifetime technical support.

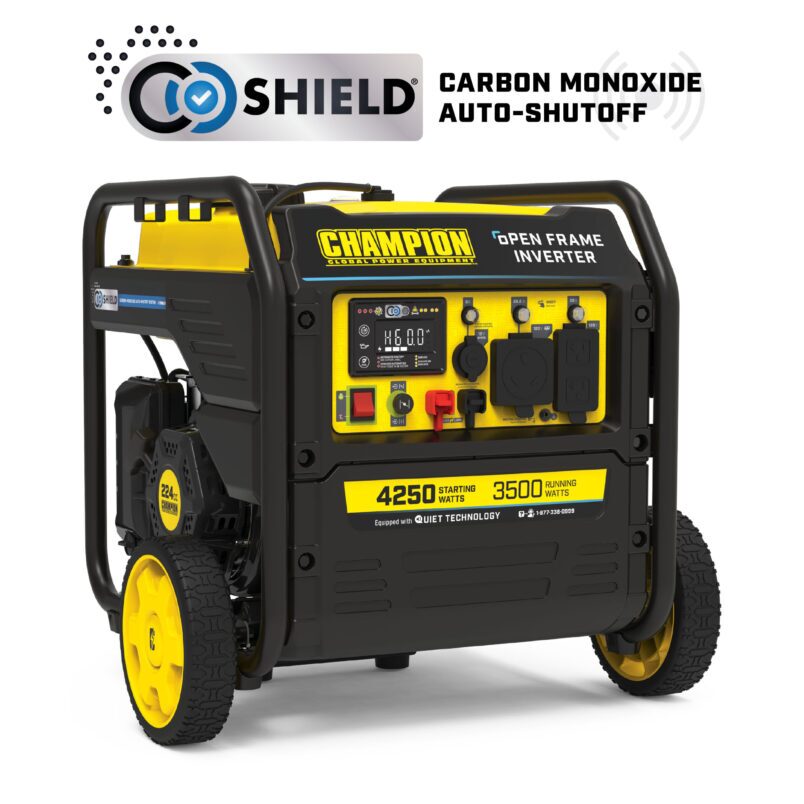

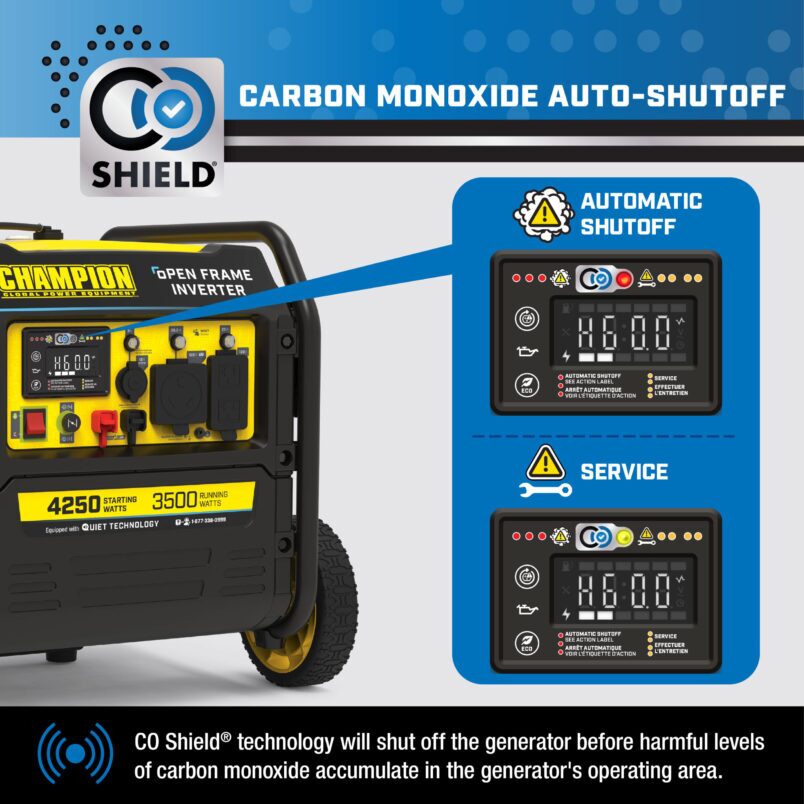

CO Shield technology monitors the accumulation of carbon monoxide (CO), a poisonous gas produced by engine exhaust when the generator is running. If CO Shield detects unsafe elevated levels of CO gas, it automatically shuts off the engine. CO Shield is not a substitute for an indoor carbon monoxide alarm or for safe operation. DO NOT allow engine exhaust fumes to enter a confined area through windows, doors, vents or other openings. Generators must ALWAYS be used outdoors, far away from occupied buildings with engine exhaust pointed away from people and buildings. Meets the requirements of ANSI/PGMA G300-2018.
What’s included
- Engine Oil
- Oil Funnel
- Wheel Kit
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Specifications
| Portable Generator Technology | CO Shield® |
|---|---|
| Gasoline Starting Watts | 4250W |
| Gasoline Running Watts | 3500W |
| Gasoline Starting Amps at 120V | 35.4A |
| Gasoline Running Amps at 120V | 29.2A |
| Volts | 120 |
| Frequency | 60Hz |
| Receptacles | 120V Duplex (5-20R), 120V (TT-30R), 12V DC Automotive, Parallel |
| DC Operation | Yes |
| GFCI Receptacles | No |
| Covered Receptacles | Yes |
| Gasoline Run Time at 1/4 Load | 22 h. |
| Noise Level | 64 dB(A) |
| Inverter | Open Frame |
| Parallel Capability | Yes |
| Voltmeter | Intelligauge with Power Meter |
| Automatic Voltage Regulation | No |
| Battery | No |
| Start Type | Recoil |
| Engine Brand | Champion |
| Engine Size | 224cc |
| Engine Type | 4-stroke |
| Engine Speed | Variable |
| Fuel Type | Gasoline |
| Fuel Gauge | Yes |
| Gasoline Capacity | 4.02 gal. |
| Gasoline Tank Material | Steel |
| Engine Oil Type | 10W-30 |
| Engine Oil Capacity | 0.5 qt. |
| Engine Oil Included | Yes |
| Low Oil Shut-Off | Yes |
| Wheels | Yes |
| Wheel Type | Solid |
| Wheel Diameter | 8 in. |
| PGMA G300-2018 Compliant | Yes |
| EPA Certified | Yes |
Dimensions
| Length | 28.6 in. |
|---|---|
| Width | 23.4 in. |
| Height | 21.6 in. |
| Weight | 83.8 lb. |
