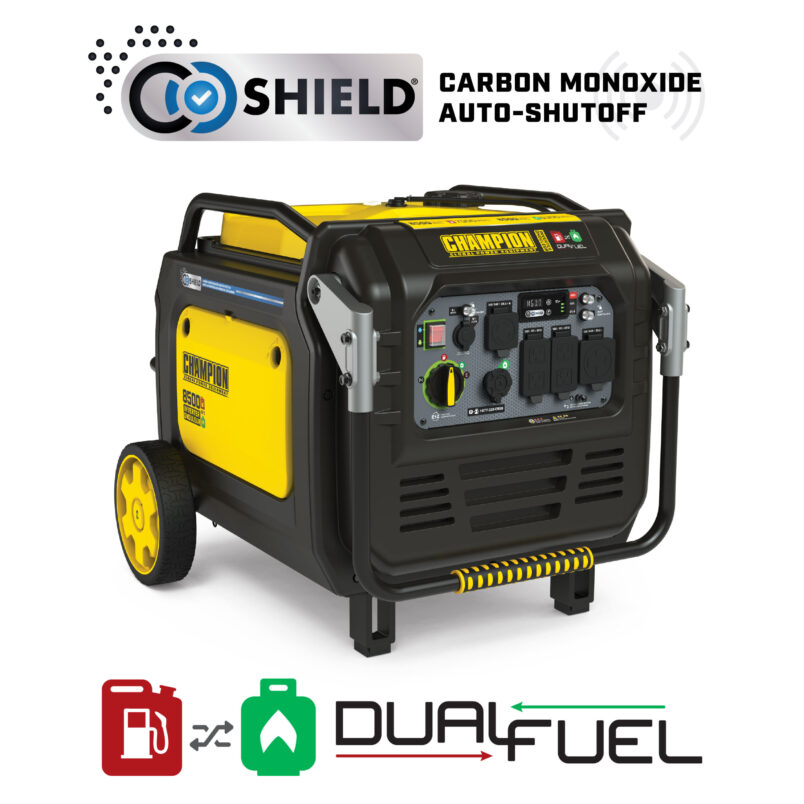

Champion's 8500-watt dual fuel inverter generator features CO Shield® carbon monoxide auto shutoff system. The advanced technology and design will improve the way you power your life. The 420cc engine runs for up to 14 hours on gasoline or up to 12 hours with a 20-lb propane tank.

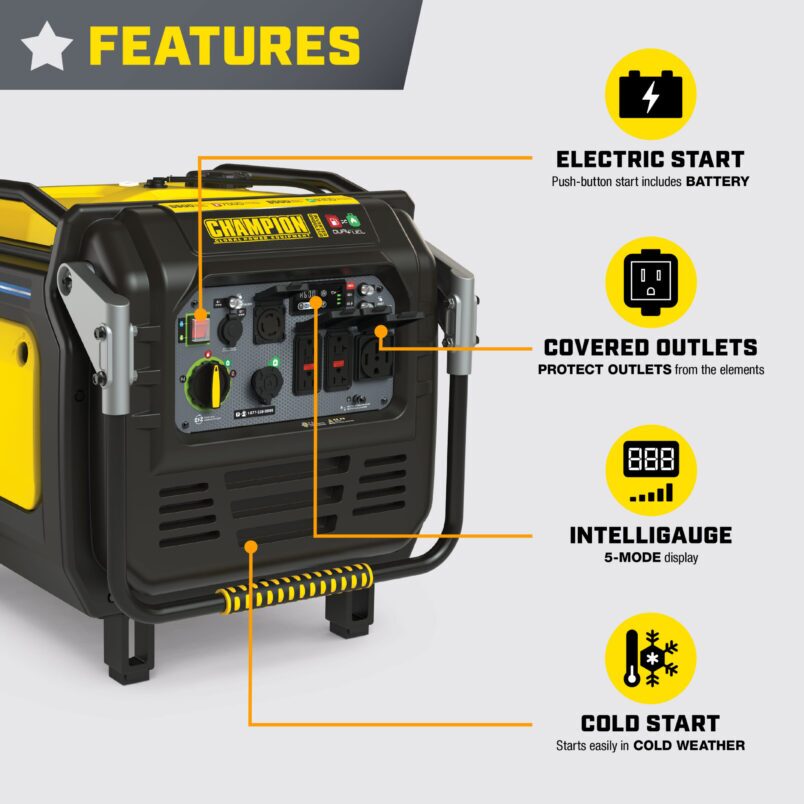

Features
Dual Fuel
Operate your 8500-watt portable generator right out of the box on either gasoline or propane, plus features CO Shield® carbon monoxide auto shutoff system plus the EZ Start Dial simplifies startup
Quiet Technology and Extended Run Time
61 dBA is great for RVs, tailgating, or camping with 8500 starting watts, 7000 running watts and up to 14 hours run time on gasoline, and 6300 running watts and up to 12 hours on propane
Electric Start with Intelligauge
Power up the 420cc Champion engine with the handy rocker switch (battery included) and use Intelligauge to monitor voltage, frequency and operating hours with ease
Clean Power for Sensitive Electronics
120/240V 29.2A 15-50R outlet, 120/240V 29.2A L14-30R locking outlet, two 120V 20A GFCI household duplex outlets with clean power (less than 3% THD), and a 12V regulated automotive-style outlet
Champion Support
Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts
Description
The Champion Power Equipment 8500-Watt Electric Start Dual Fuel Inverter Generator with CO Shield® is ultra-quiet and ideal for camping, tailgating, powering items around the RV or providing backup for your essentials.
Champion’s EZ Start Dial makes getting started quick and easy. Featuring Cold Start technology, extended run time, electric start with battery and an easy to read fuel gauge.
With a 1.2-quart oil capacity (included 5W-30) and a low oil shut-off sensor, this inverter operates at an ultra-quiet 61 dBA from 23 feet, which is about as loud as normal speech.
The no tool access panel and oil drain tube allow for easy maintenance.
Operate your Dual Fuel inverter right out of the box on gasoline or propane, and easily switch fuels with the EZ Start dial. When the 5.33-gallon tank of gasoline is full, the 420cc Champion engine produces 8500 starting watts and 7000 running watts and will run for up to 14 hours at 25% load. When using a 20-pound propane tank, it produces 8500 starting watts and 6300 running watts and will run for up to 12 hours at 25% load.

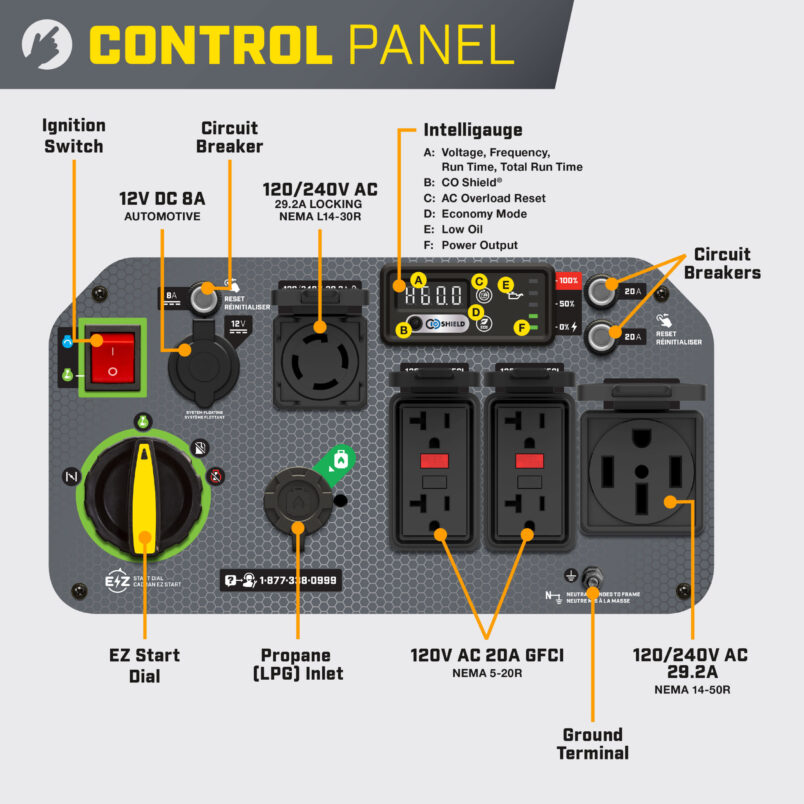

Our Quick Touch Panel offers fast access to all your controls. The Intelligauge monitors voltage, frequency and operating hours with ease, while Economy Mode monitors power consumption in real time to reduce engine wear and tear. As the electrical load is reduced, the inverter reduces engine speed, providing quieter operation, extended engine life and higher fuel economy.
The covered outlets included are a 120/240V 29.2A outlet (L14-50R), a 120/240V 30A locking outlet (L14-30R), two 120V 20A GFCI household duplex outlets (5-20R), and a 12V automotive-style outlet.
Buy this EPA certified inverter generator with confidence – Champion Support and our nationwide network of service centers will back up your purchase with a 3-year limited warranty and FREE lifetime technical support.

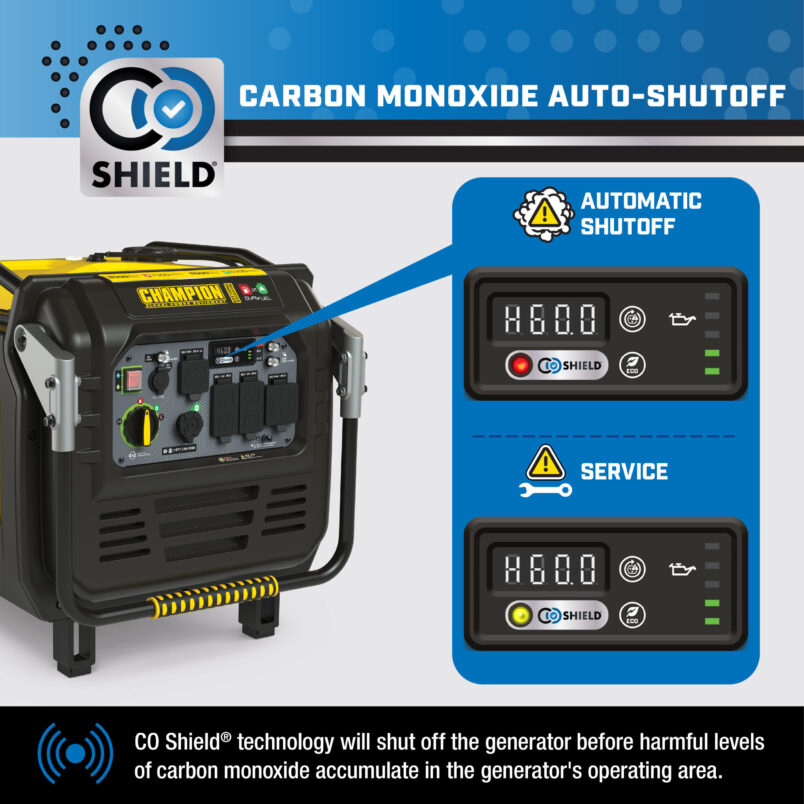

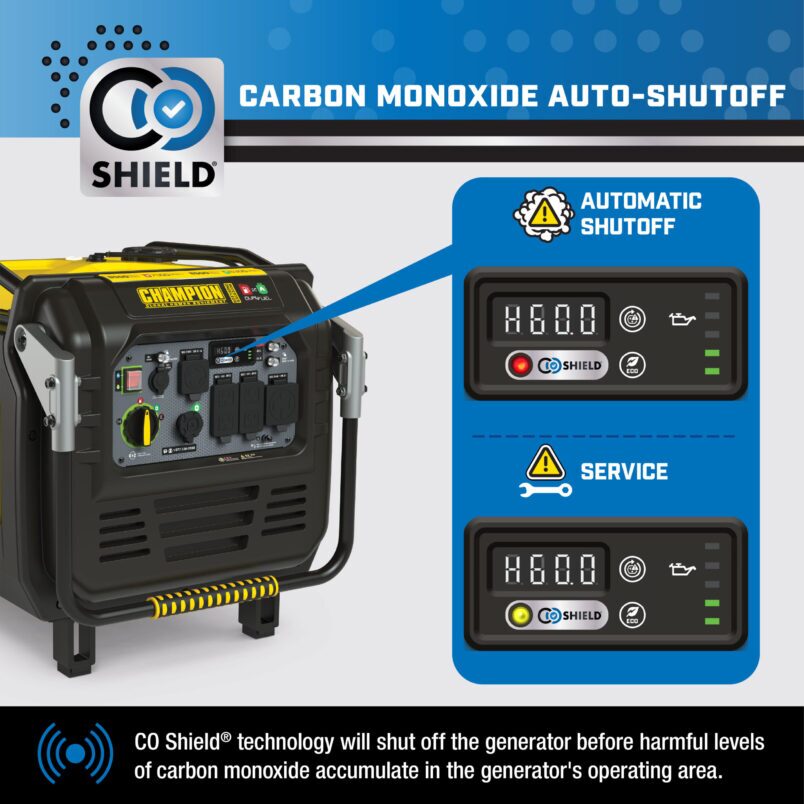

CO Shield technology monitors the accumulation of carbon monoxide (CO), a poisonous gas produced by engine exhaust when the generator is running. If CO Shield detects unsafe elevated levels of CO gas, it automatically shuts off the engine. CO Shield is not a substitute for an indoor carbon monoxide alarm or for safe operation. DO NOT allow engine exhaust fumes to enter a confined area through windows, doors, vents or other openings. Generators must ALWAYS be used outdoors, far away from occupied buildings with engine exhaust pointed away from people and buildings. Meets the requirements of ANSI/PGMA G300-2018.
What’s included
- Engine Oil
- Oil Funnel
- Propane (LPG) Hose
- Spark Plug Wrench
- Wheel Kit
- Battery
Specifications
Portable Generator Technology | Dual Fuel, CO Shield® |
---|---|
Gasoline Starting Watts | 8500W |
Gasoline Running Watts | 7000W |
Propane Starting Watts | 8500W |
Propane Running Watts | 6300W |
Gasoline Starting Amps at 120V | 70.8A |
Gasoline Starting Amps at 240V | 35.4A |
Gasoline Running Amps at 120V | 58.3A |
Gasoline Running Amps at 240V | 29.2A |
Propane Starting Amps at 120V | 70.8A |
Propane Starting Amps at 240V | 35.4A |
Propane Running Amps at 120V | 52.5A |
Propane Running Amps at 240V | 26.3A |
Volts | 120/240 |
Frequency | 60Hz |
Receptacles | (2) 120V 20A GFCI Duplex (5-20R), (1) 120/240V Locking (L14-30R), (1) 120V (14-50R), (1) 12V DC Automotive |
DC Operation | Yes |
GFCI Receptacles | Yes |
Covered Receptacles | Yes |
Gasoline Run Time at 1/4 Load | 14 h. |
Propane Run Time at 1/4 Load | 12 h. |
Noise Level | 61 dBA |
Inverter | Traditional |
Parallel Capability | No |
Voltmeter | Intelligauge with Power Meter |
Automatic Voltage Regulation | No |
Battery | Yes |
Start Type | Recoil, Electric |
Engine Brand | Champion |
Engine Size | 420cc |
Engine Type | 4-stroke |
Engine Speed | Variable |
Fuel Type | Gasoline, Propane (LPG) |
Fuel Gauge | Analog |
Gasoline Capacity | 5.3 gal. |
Gasoline Tank Material | Metal |
Engine Oil Type | 5W-30 |
Engine Oil Capacity | 1.2 qt. |
Engine Oil Included | Yes |
Low Oil Shut-Off | Yes |
Wheels | Yes |
Wheel Type | Solid |
Wheel Diameter | 9.5 in. |
PGMA G300-2018 Compliant | Yes |
ETL Listing | cETL |
EPA Certified | Yes |
Dimensions
Length | 33.4 in. |
---|---|
Width | 29.1 in. |
Height | 26 in. |
Weight | 213.9 lb. |
