Model #201067

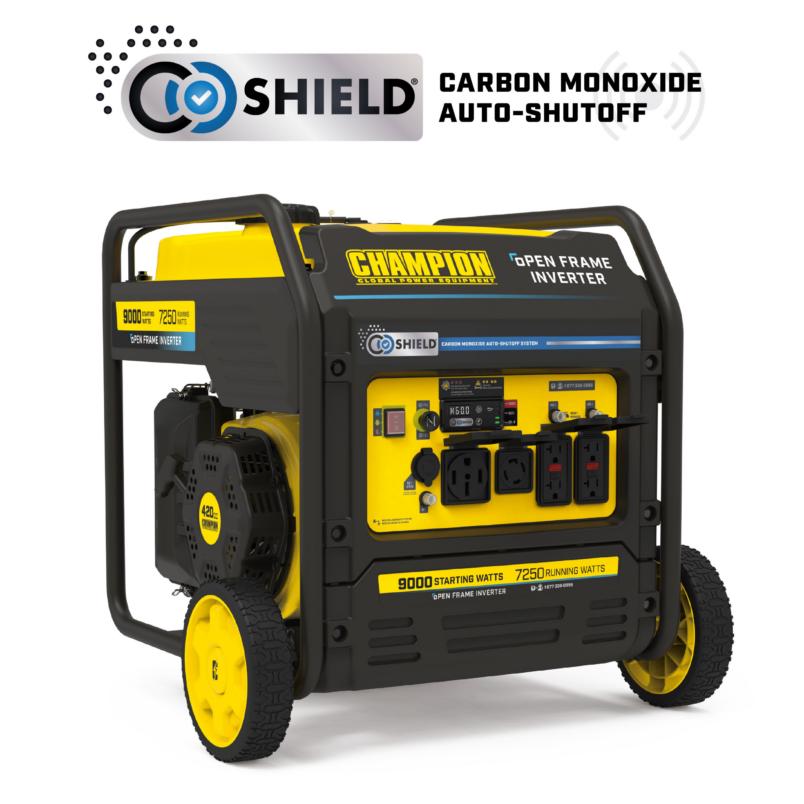

9000W Electric Start Open Frame Inverter with CO Shield®
Champion’s Open Frame Inverter with CO Shield® is 50% quieter and 20% lighter than a traditional 7250-watt generator. Our advanced feature-packed power solution includes Quiet Technology, Extended Run Time, Economy Mode and Clean Power.

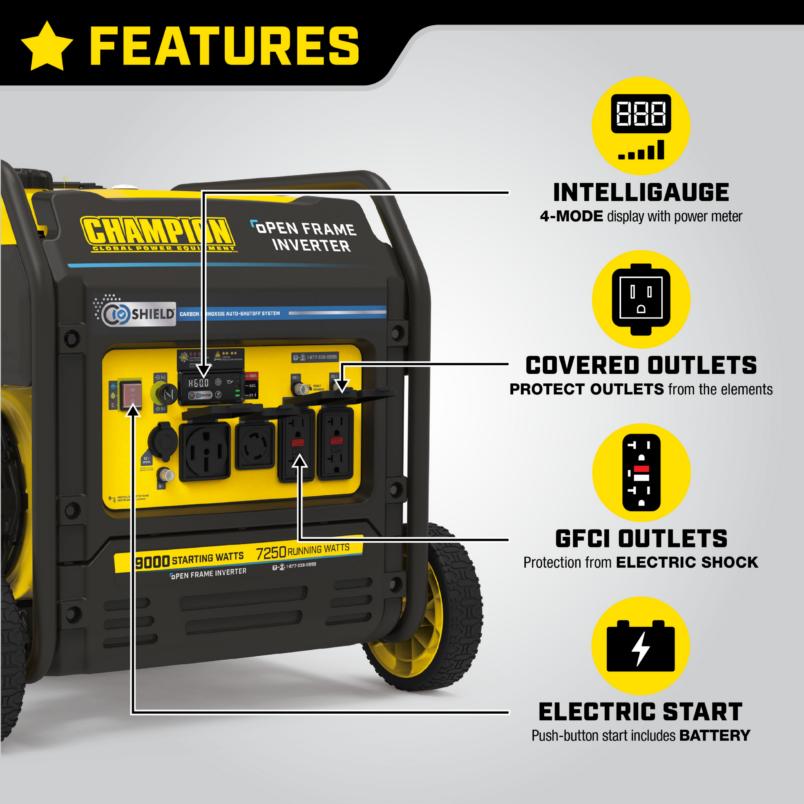

Features
Electric Start
Trust the reliable 420cc Champion engine with its battery-included electric start featuring a reliable toggle switch, a built-in Cold Start Technology for easy starts in cold weather, plus features CO Shield® carbon monoxide auto shutoff system
Advanced Design
50% quieter and 20% lighter than a traditional 7250-watt generator, plus Economy Mode saves fuel and extends engine life, and Intelligauge with Power Meter monitors voltage, frequency and operating hours
Quiet Technology and Extended Run Time
72 dBA is great for RVs, tailgating, your next project or home backup, with 9000 starting watts and 7250 running watts for up to 10.5 hours run time on gasoline
Clean electricity for sensitive electronics
A 120/240V 30.2A outlet (14-50R), a 120/240V 30A locking outlet, two 120V 20A household duplex outlets with clean power (less than 3% THD), plus a 12V automotive-style outlet, and a handy dual port USB adapter
Champion Support
Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts
Description
The Champion Power Equipment 9000-Watt Open Frame Inverter Generator with CO Shield® is one of the most innovative products on the market. Our advanced technology and innovative design will improve the way you power your life.
First, we cut the noise level in half by integrating Quiet Technology digital components used in more advanced inverters. Then, we created an efficient mechanical design to decrease the overall footprint and weight by 20 percent. A quiet, lightweight addition to your RV and a cost-effective power solution, this Open Frame Inverter is smaller, quieter, lighter…BETTER!
Champion’s got convenience covered. You’ll appreciate the handy electric start with included battery, plus Cold Start Technology ensures a quick start in cold weather. The reliable 420cc Champion engine produces 9000 starting watts and 7250 running watts, and runs for 10.5 hours at 25% load when the 4.3-gallon fuel tank is full.
Confidently connect your sensitive electronics since this inverter produces Clean Power (less than 3% THD).

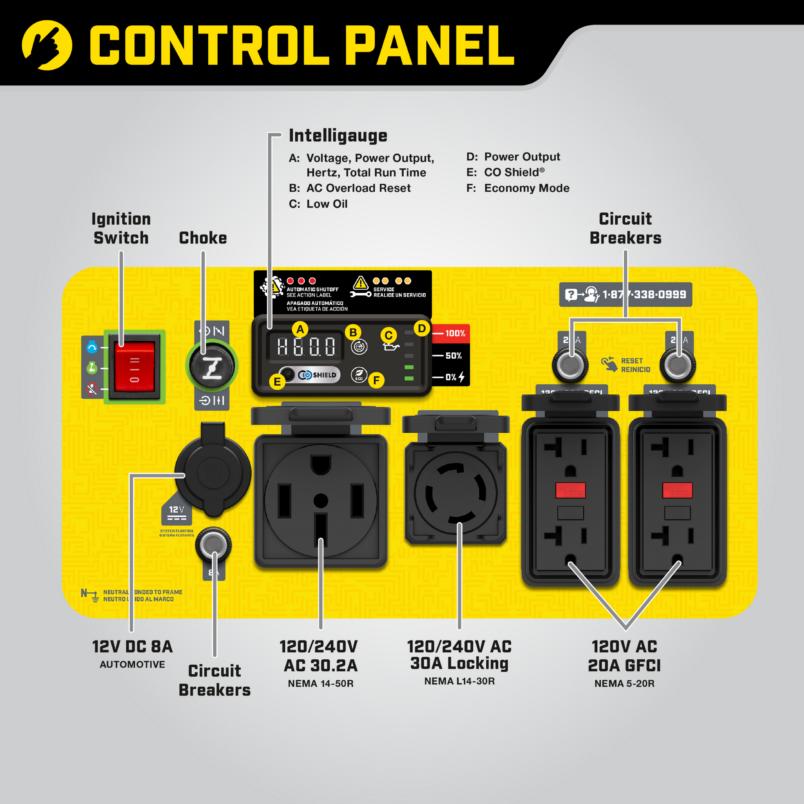

Our Quick Touch Panel offers fast access to all your controls. The Intelligauge with Power Meter monitors voltage, frequency and operating hours with ease, while Economy Mode monitors power consumption in real time to reduce electrical load. As the electrical load is reduced, the engine idles lower, providing quieter operation, extended engine life and higher fuel economy.
All the outlets have covers for protection and include two 120V 20A GFCI protected household duplex outlets (5-20R), a 120/240V 30A locking outlet (L14-30R), a 120/240V 30.2A outlet (14-50R), plus a 12V automotive-style outlet, and a handy dual port USB adapter you can use to power your phone, laptop, or similar device.
Buy this fully assembled EPA certified and CARB compliant generator with confidence – Champion Support and our nationwide network of service centers will back up your purchase with a 3-year limited warranty and FREE lifetime technical support.

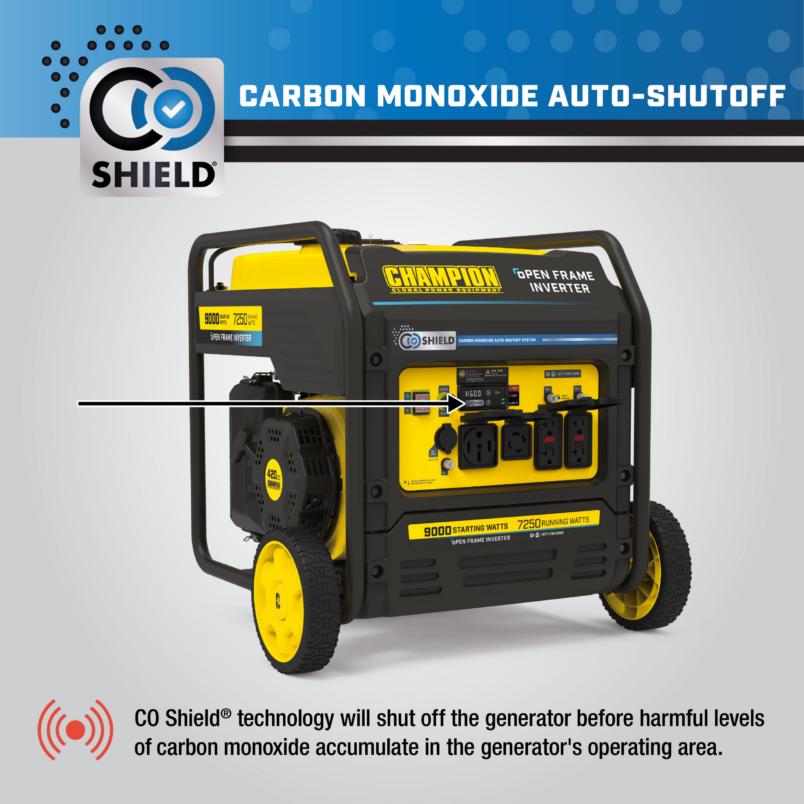

CO Shield® technology monitors the accumulation of carbon monoxide (CO), a poisonous gas produced by engine exhaust when the generator is running. If CO Shield® detects unsafe elevated levels of CO gas, it automatically shuts off the engine. CO Shield® is not a substitute for an indoor carbon monoxide alarm or for safe operation. DO NOT allow engine exhaust fumes to enter a confined area through windows, doors, vents or other openings. Generators must ALWAYS be used outdoors, far away from occupied buildings with engine exhaust pointed away from people and buildings. Meets the requirements of ANSI/PGMA G300-2018.
What’s included
- Wheel Kit
- Handle
- USB Adapter
- Engine Oil
- Oil Funnel
- Battery
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Specifications
| Portable Generator Technology | CO Shield® |
|---|---|
| Gasoline Starting Watts | 9000W |
| Gasoline Running Watts | 7250W |
| Gasoline Starting Amps at 120V | 75A |
| Gasoline Starting Amps at 240V | 37.5A |
| Gasoline Running Amps at 120V | 60.4A |
| Gasoline Running Amps at 240V | 30.2A |
| Volts | 120/240 |
| Frequency | 60Hz |
| Receptacles | 120/240V 30.2A (14-50R), 120/240V 30A (L14-30R), GFCI 120V 20A Duplex (5-20R) (2), 12V DC Automotive |
| DC Operation | Yes |
| GFCI Receptacles | Yes |
| Covered Receptacles | Yes |
| Gasoline Run Time at 1/4 Load | 10.5 h. |
| Noise Level | 72 dBA |
| Inverter | Open Frame |
| Parallel Capability | No |
| Voltmeter | Intelligauge with Power Meter |
| Automatic Voltage Regulation | No |
| Battery | Yes |
| Start Type | Recoil, Electric |
| Engine Brand | Champion |
| Engine Size | 420cc |
| Engine Type | 4-stroke |
| Engine Speed | Variable |
| Fuel Type | Gasoline |
| Fuel Gauge | Yes |
| Gasoline Capacity | 4.3 gal. |
| Gasoline Tank Material | Steel |
| Engine Oil Type | 10W-30 |
| Engine Oil Capacity | 1.1 qt. |
| Engine Oil Included | Yes |
| Low Oil Shut-Off | Yes |
| Wheels | Yes |
| Wheel Type | Solid |
| Wheel Diameter | 8 in. |
| PGMA G300-2018 Compliant | Yes |
| EPA Certified | Yes |
| CARB Compliant | Yes |
Dimensions
| Length | 26.6 in. |
|---|---|
| Width | 25.5 in. |
| Height | 24.6 in. |
| Weight | 152.2 lb. |
