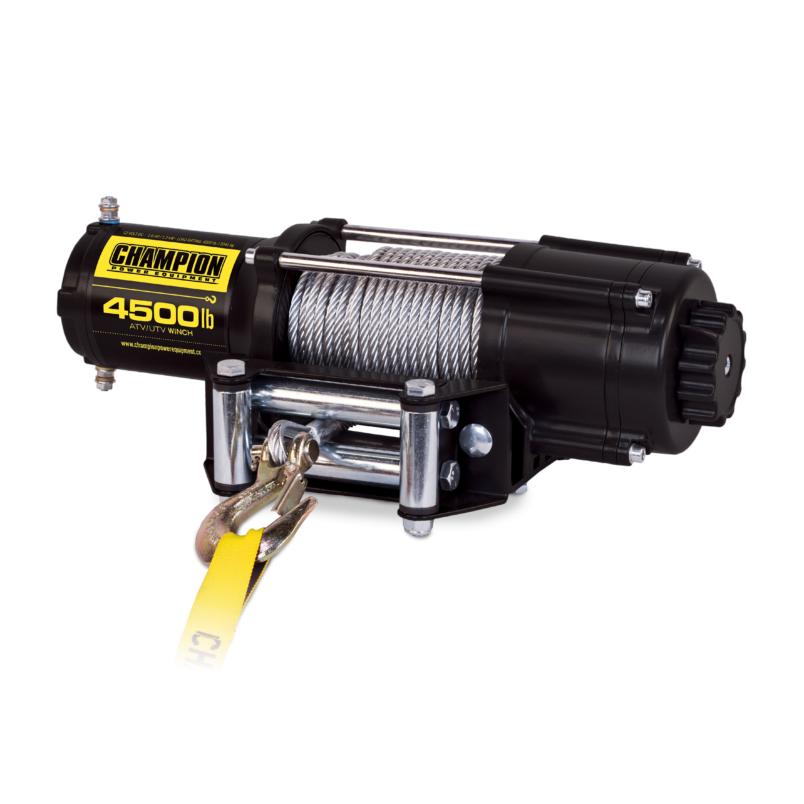

Champion’s ATV/UTV Wireless Winch Kit has a 4500-lb. rated line pull powered by a 1.6-horsepower (12-volt) DC motor. With a gear reduction ratio of 180:1, this kit includes a wireless remote and antenna, wiring kit with mini-rocker switch and everything else you need to start winching.
Features
Convenient
Operate the winch from anywhere within a 50-foot radius with the wireless remote and antenna, which automatically powers off when not in use to preserve your vehicle's battery
Efficient
The 4500-lb. rated line pull powered by a 1.6-horsepower (12-volt) DC motor has a line speed of 4.6 feet per minute with a full load, and 12.8 feet per minute with no load
Complete Setup
Included wireless remote and antenna, mounting channel, roller fairlead and wiring kit with contactor and mini-rocker handlebar switch create an easier than ever winching experience
Hassle-Free
The roller fairlead creates a safe and smooth pull with the dependable 38-foot galvanized super-duty aircraft cable which is able to withstand abrasive terrain without fraying
Reliable
Champion Support includes 2-year limited warranty with FREE lifetime technical support from dedicated experts
Description

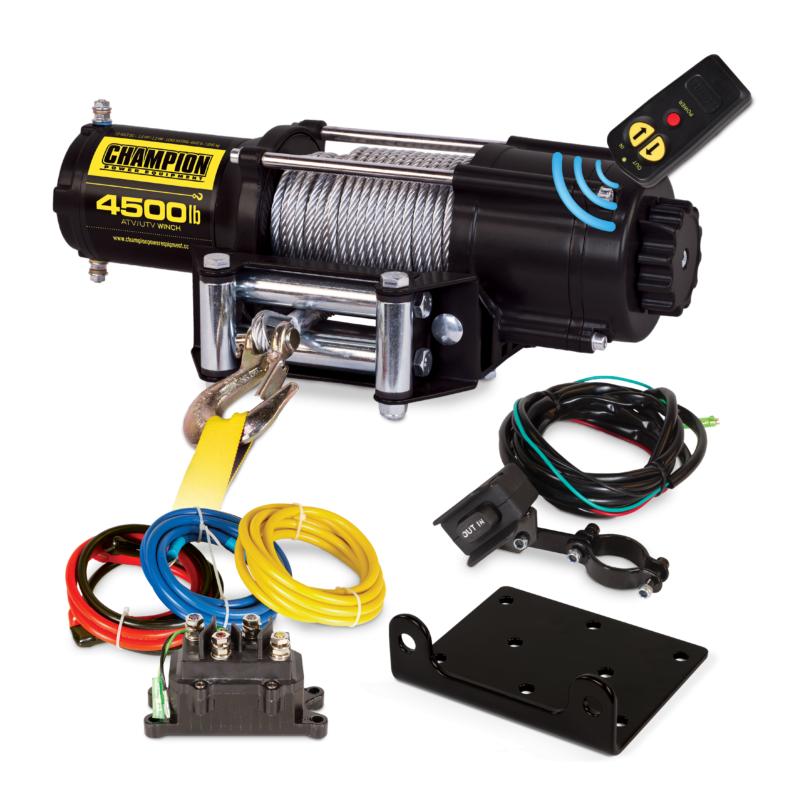

The Champion Power Equipment 14560 4500-lb. ATV/UTV Wireless Winch Kit includes everything you need to start winching, including a wireless remote with antenna, a mounting channel, a roller fairlead and a wiring kit with contactor and mini-rocker handlebar switch. This winch kit is the perfect combination of power and performance to use with your ATV, trailer, boat or snowmobile.
Enjoy wireless convenience while winching and operate your winch from up to 50 feet away with the wireless remote and antenna. Complete wiring instructions make installation quick and easy. Champion’s thoughtful design includes an auto-off feature - the remote automatically powers off when not in use to keep your vehicle's battery from being drained unnecessarily.
With a rated line pull of 4500 pounds, mount this winch on your ATV or side by side with the mounting channel to quickly harness the impressive strength of its 1.6-horsepower (12-volt) DC permanent magnet motor.
The 38-foot by 15/64-inch galvanized, super-duty aircraft cable is less prone to fraying, even when used in highly abrasive terrain, such as in rocks, mud, or sand. This incredibly strong cable is guided onto the 1.7 by 3.2-inch drum through the reliable roller fairlead to maximize the life of the cable.
The three-stage planetary gear system along with the free-spooling clutch and mini-rocker handlebar switch offer excellent control while winching. Designed with your safety in mind, this winch features dynamic braking of the winch drum so you’ll have the stopping power you need for each job.
With a gear reduction ratio of 180:1, the winch boasts a line speed of 4.6 feet per minute with a full load, and 12.8 feet per minute with no load.
Accompanied by the heavy-duty clevis hook and handy strap, this compact and lightweight tool is anything but lightweight when it comes to power. Offering much more than a motor and a spool of rope, the Champion 4500-lb. Winch Kit is a necessary tool for any situation you might encounter.
Champion Support and our nationwide network of service centers will back up your purchase with a 2-year limited warranty and FREE lifetime technical support.
What’s included
- Clevis Hook
- Hook Strap
- Mounting Channel
- Roller Fairlead
- Wireless Remote Control
- Mini-Rocker Switch
- Contactor
- Battery Leads
- Antenna
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Specifications
| Line Pull | 4500 lb. |
|---|---|
| Remote Length | 13.8 ft. |
| Gear Ratio | 180:1 |
| Gear System | Three-Stage Planetary |
| Full Load Line Speed | 4.6 ft/min |
| No-Load Line Speed | 12.8 ft/min |
| Clutch Type | Free Spooling |
| Brake System | Dynamic |
| Rope Material | Galvanized Steel |
| Rope Length | 38 ft. |
| Rope Diameter | 15/64 in. |
| Fairlead Type | 4-Way Roller |
| Drum Size | 1.7 x 3.1 in. |
| Bolt Pattern | 4.9 x 3 in. |
| Mounting Channel | Standard |
| Motor Type | 12V DC (Permanent Magnet) |
| Horsepower | 1.6 hp |
| Max Current at Full Load | 280A |
| Duty Cycle | Intermittent |
Dimensions
| Length | 12.7 in. |
|---|---|
| Width | 4.1 in. |
| Height | 4.2 in. |
| Weight | 19.7 lb. |
