Champion’s ATV/UTV Winch Kit has a 2000-lb. rated line pull, a gear reduction ratio of 153:1, plus a mounting channel and a remote control to make your experience with this winch even easier. With a tough 1-horsepower (12-volt) DC motor, this winch is your go-to tool...
Features
Powerful
2000-lb. rated line pull powered by a 1-horsepower (12-volt) DC motor
Efficient
Line speed of 3.3 feet per minute with a full load, and 10.5 feet per minute with no load
Convenient
Included mounting channel, remote control and roller fairlead create an easier than ever winching experience
Hassle-Free
The roller fairlead creates a safe and smooth pull with the dependable 49-foot galvanized super-duty aircraft cable which is able to withstand abrasive terrain without fraying
Reliable
Champion Support includes 2-year limited warranty with FREE lifetime technical support from dedicated experts
Description

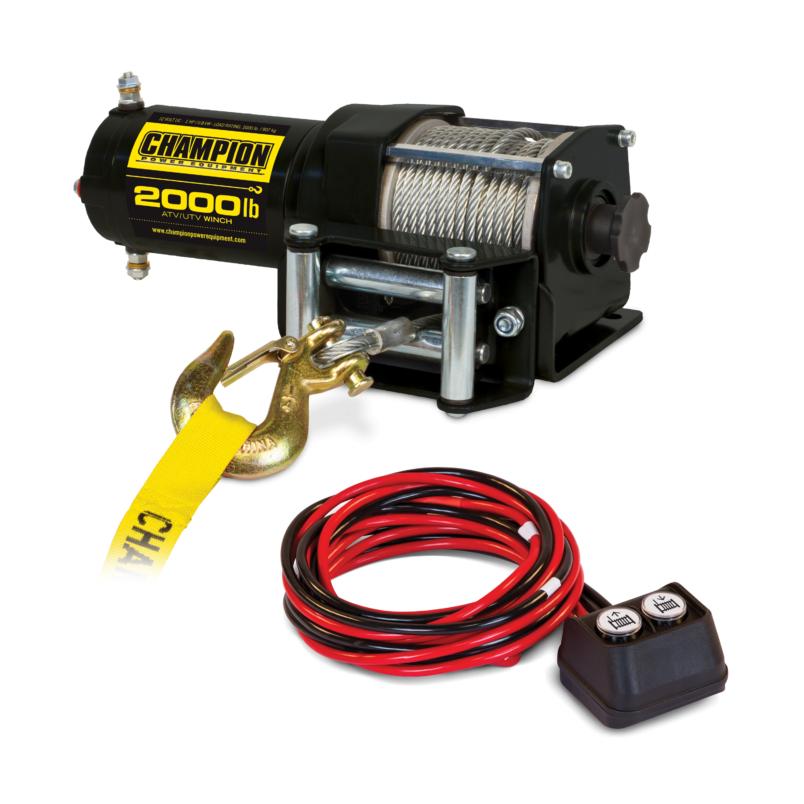

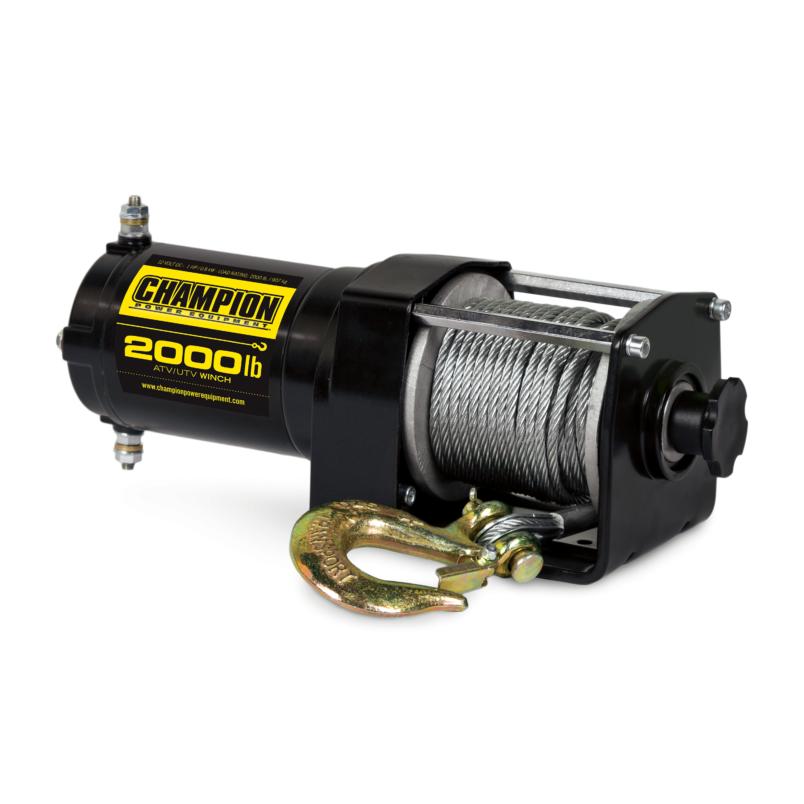

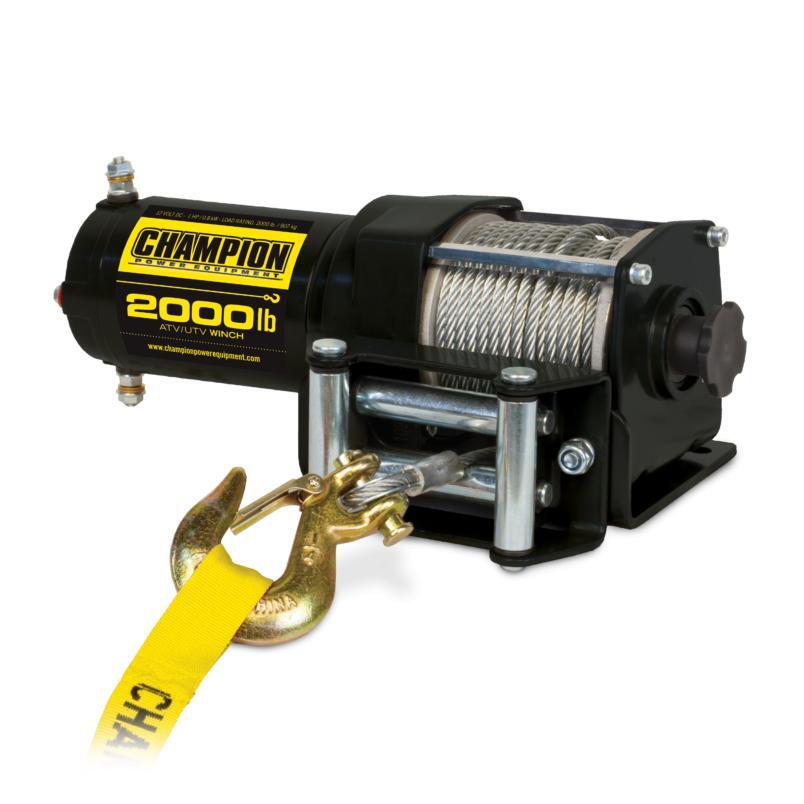

The Champion Power Equipment 12003 2000-lb. ATV/UTV Winch Kit includes everything you need to start winching, including a mounting channel, a roller fairlead and a remote control.
With a rated line pull of 2000 pounds, mount this winch on your ATV or side by side with the mounting channel to quickly harness the strength of its 1-horsepower (12-volt) DC permanent magnet motor.
The 49-foot by 5/32-inch galvanized, super-duty aircraft cable is less prone to fraying, even when used in highly abrasive terrain, such as in rocks, mud, or sand. This incredibly strong cable is guided onto the 1.2 by 2.9-inch drum through the reliable roller fairlead to maximize the life of the cable.
The planetary gear system along with the free-spooling clutch and handlebar-mounted remote control offer excellent control while winching. Designed with your safety in mind, this winch features dynamic braking of the winch drum so you’ll have the stopping power you need for each job.
With a gear reduction ratio of 153:1, the winch boasts a line speed of 3.3 feet per minute with a full load, and 10.5 feet per minute with no load.
Accompanied by the heavy-duty clevis hook and handy strap, this compact and lightweight tool is anything but lightweight when it comes to power. Offering much more than a motor and a spool of rope, the Champion 2000-lb. Winch Kit is a necessary tool for any situation you might encounter.
Champion Support and our nationwide network of service centers will back up your purchase with a 2-year limited warranty and FREE lifetime technical support.

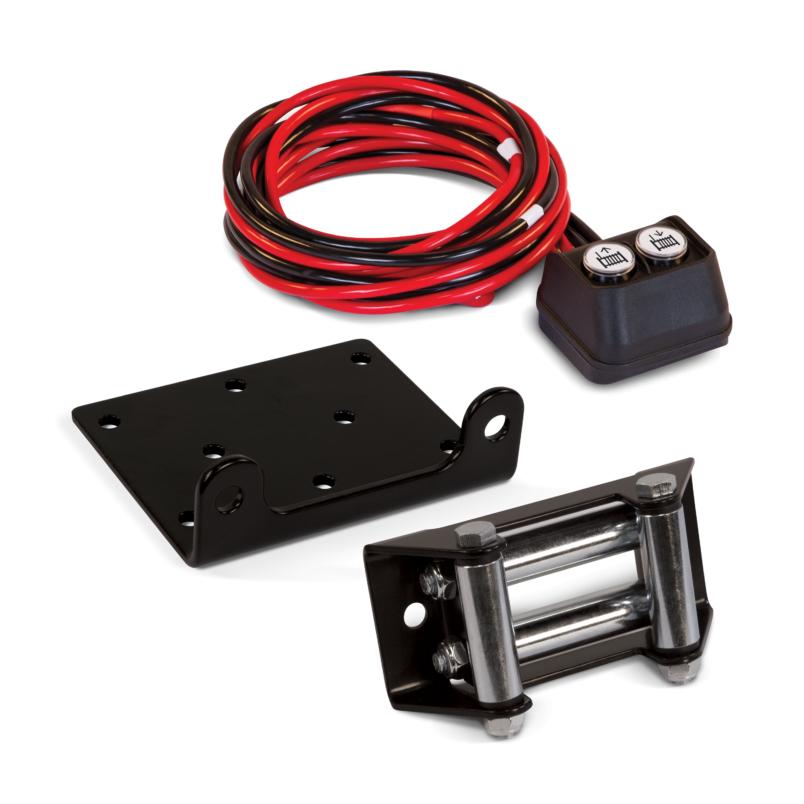

What’s included
- Clevis Hook
- Hook Strap
- Mounting Channel
- Roller Fairlead
- Remote Control
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Specifications
| Line Pull | 2000 lb. |
|---|---|
| Remote Length | 10.3 ft. |
| Gear Ratio | 153:1 |
| Gear System | Three-Stage Planetary |
| Full Load Line Speed | 3.3 ft/min |
| No-Load Line Speed | 10.5 ft/min |
| Clutch Type | Free Spooling |
| Brake System | Dynamic |
| Rope Material | Galvanized Steel |
| Rope Length | 49 ft. |
| Rope Diameter | 5/32 in. |
| Fairlead Type | 4-Way Roller |
| Drum Size | 1.2 x 2.9 in. |
| Bolt Pattern | 3.1 x 4.9 in. |
| Mounting Channel | Standard |
| Motor Type | 12V DC (Permanent Magnet) |
| Horsepower | 1 hp |
| Max Current at Full Load | 120A |
| Duty Cycle | Intermittent |
Dimensions
| Length | 11.4 in. |
|---|---|
| Width | 3.9 in. |
| Height | 4.3 in. |
| Weight | 16.5 lb. |
