Champion’s ATV/UTV Winch Kit has a 4500-lb. rated line pull powered by a 1.6-horsepower (12-volt) DC motor. With a gear reduction ratio of 180:1, this kit includes a mounting channel, synthetic rope and a hawse fairlead and a wiring kit with contactor and mini-rocker handlebar switch - everything you need to start winching.
Features
Powerful
4500-lb. rated line pull powered by a 1.6-horsepower (12-volt) DC motor
Efficient
Line speed of 4.6 feet per minute with a full load, and 12.8 feet per minute with no load
Complete Setup
Included mounting channel, synthetic rope with hawse fairlead and wiring kit with contactor and mini-rocker handlebar switch create an easier than ever winching experience
Hassle-Free
The hawse fairlead creates a smooth pull with the safe, strong and flexible synthetic rope, which is lightweight, splinter-free, won’t kink, has less recoil than steel and floats
Reliable
Champion Support includes 2-year limited warranty with FREE lifetime technical support from dedicated experts
Description

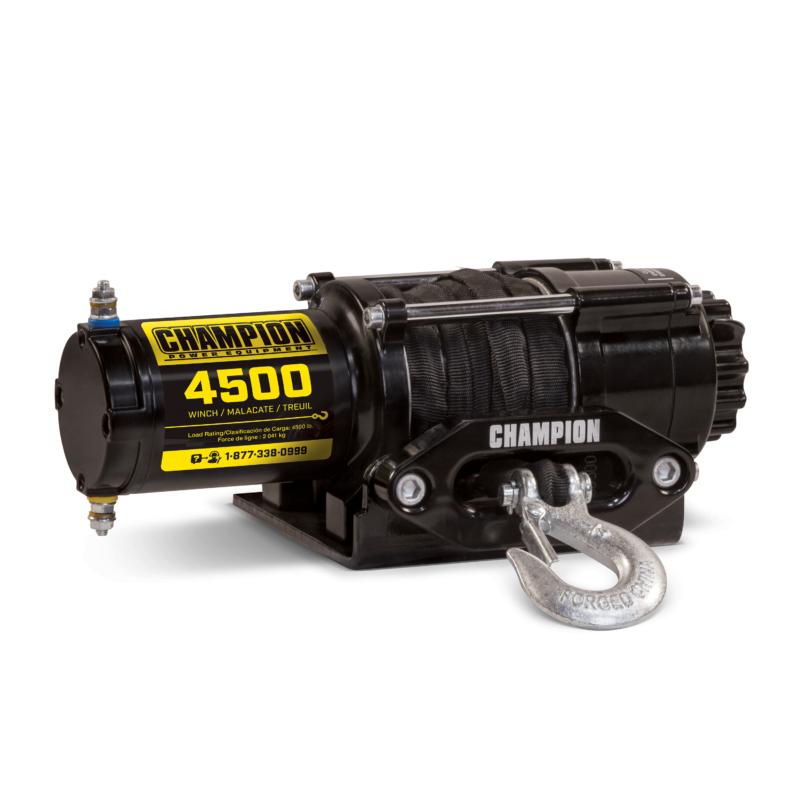

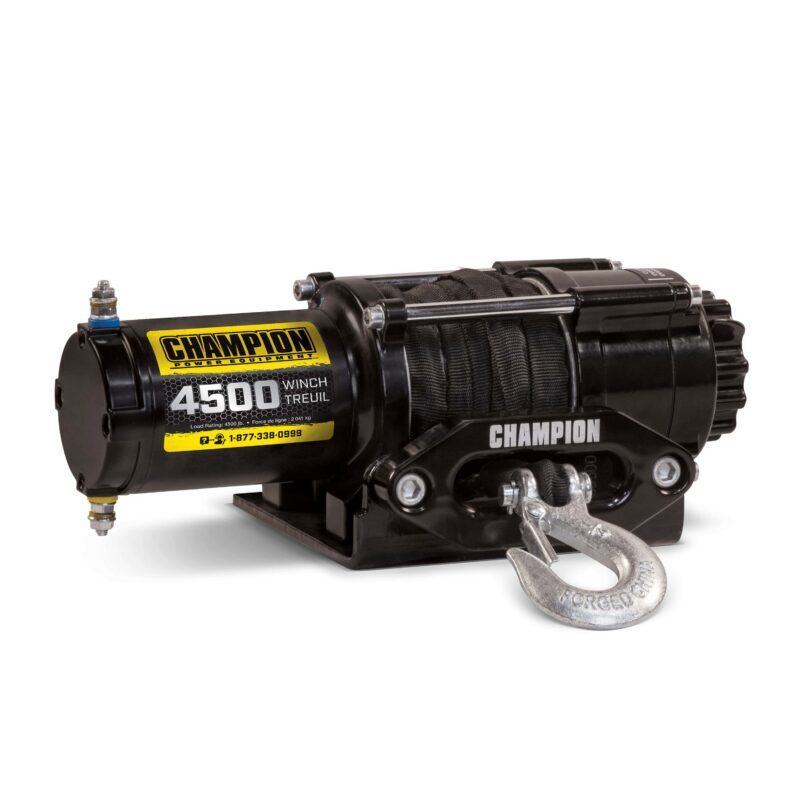

The Champion Power Equipment 100590 4500-lb. ATV/UTV Synthetic Rope Winch Kit includes everything you need to start winching.
With a rated line pull of 4500 pounds, mount this winch on your ATV or side by side with the included mounting plate to quickly harness the strength of its 1.6-horsepower (12-volt) DC permanent magnet motor.
Made from hi-tech polyethylene, the high flexibility and low weight of synthetic rope prevent kinking, plus it won’t fray or curl.
Synthetic rope stores less kinetic energy and will not recoil with as much force as steel, and if it breaks, it can be repaired in the field, plus it floats so water recovery is easier. Since it’s free of wire splinters or burrs often found in steel rope, there’s less chance of injury.

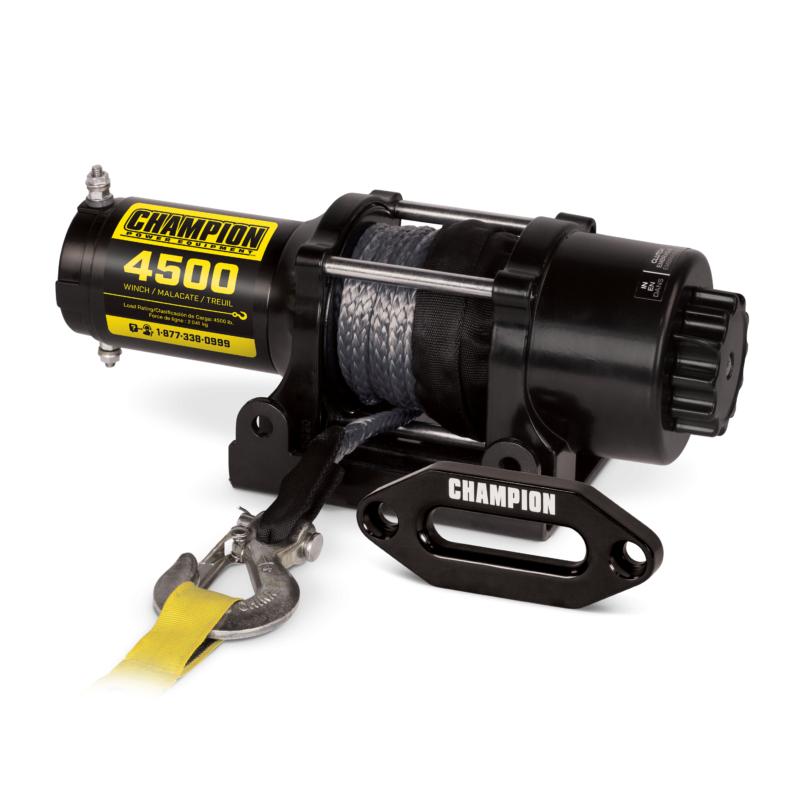

Designed with a stainless steel thimble and protective sleeve, the 38-feet by 15/64-inch synthetic winch rope is guided onto the drum through the fairlead. Featuring a black anodized finish, the lightweight aluminum hawse fairlead is precisely machined to maximize the life of the synthetic rope.
The three-stage planetary gear system along with the free-spooling clutch and ergonomic mini-rocker handlebar switch offer excellent control while winching. Designed with your safety in mind, this winch features dynamic braking of the winch drum so you’ll have the stopping power you need for each job.
With a gear reduction ratio of 180:1, the winch boasts a line speed of 4.6 feet per minute with a full load, and 12.8 feet per minute with no load.
The drum measures 1.7 by 3.1 inches, and accompanied by the heavy-duty clevis hook and handy strap, this compact and lightweight tool is anything but lightweight when it comes to power.
Offering much more than a motor and a spool of rope, the Champion 4500-lb. winch kit is a necessary tool for any situation you might encounter.
Champion Support and our nationwide network of service centers will back up your purchase with a 2-year limited warranty and FREE lifetime technical support.

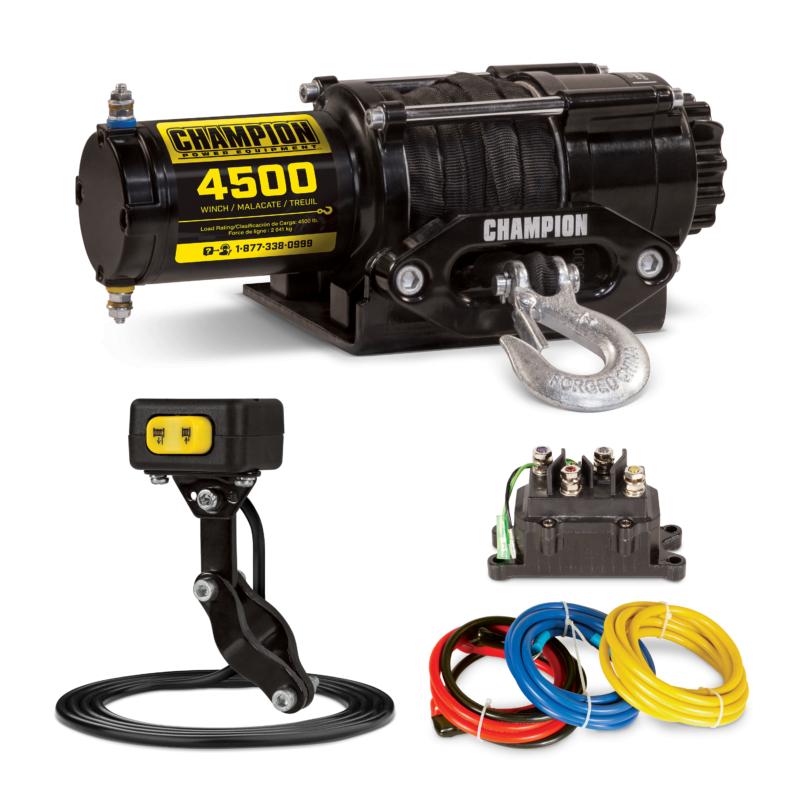

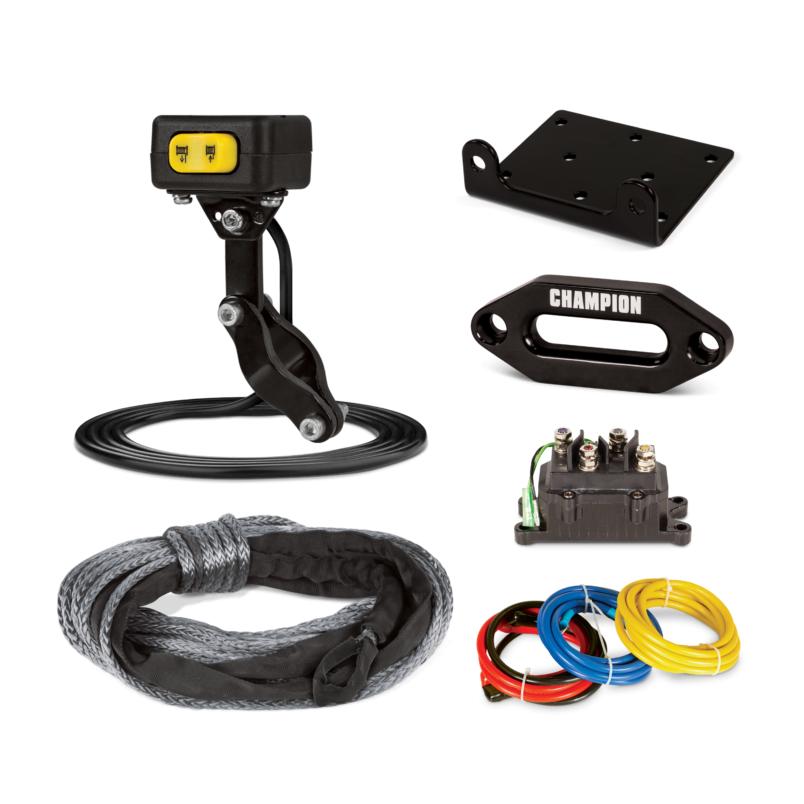

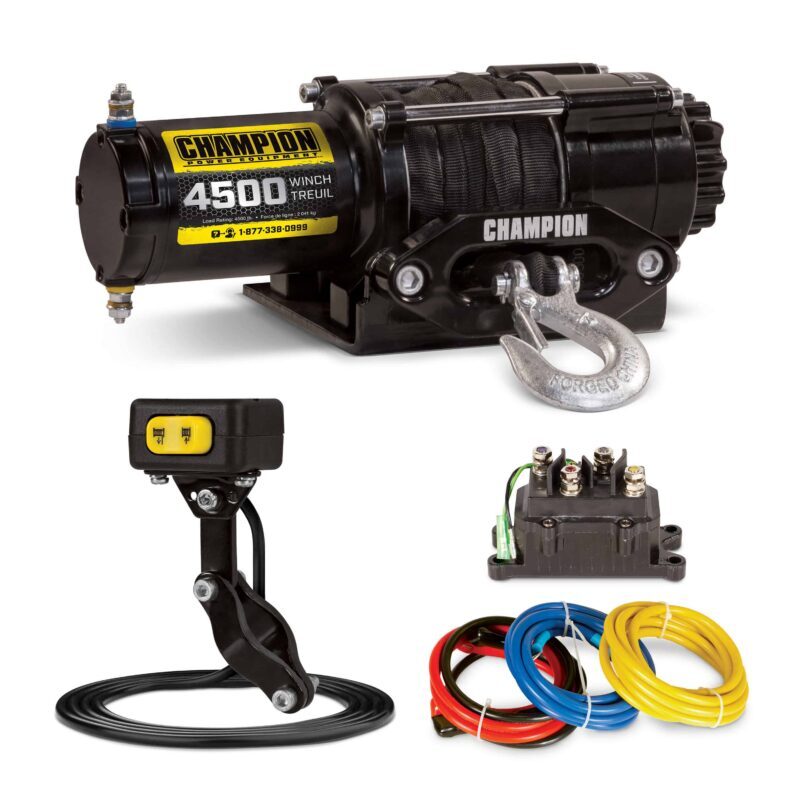

What’s included
- Mounting Channel
- Hawse Fairlead
- Clevis Hook
- Synthetic Rope
- Contactor
- Battery Leads
- Hook Strap
- Mini-Rocker Switch
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Specifications
| Winch Type | Powersports |
|---|---|
| Line Pull | 4500 lb. |
| Remote Length | 10.3 ft. |
| Gear Ratio | 180:1 |
| Gear System | Three-Stage Planetary |
| Full Load Line Speed | 4.6 ft/min |
| No-Load Line Speed | 12.8 ft/min |
| Clutch Type | Free Spooling |
| Brake System | Dynamic |
| Rope Material | Galvanized Steel |
| Rope Length | 38 ft. |
| Rope Diameter | 15/64 in. |
| Fairlead Type | Hawse |
| Drum Size | 1.7 x 3.1 in. |
| Bolt Pattern | 3 x 4.9 in. |
| Mounting Channel | Standard |
| Motor Type | 12V DC (Permanent Magnet) |
| Horsepower | 1.6 hp |
| Max Current at Full Load | 280A |
| Duty Cycle | Intermittent |
Dimensions
| Length | 13.5 in. |
|---|---|
| Width | 4.5 in. |
| Height | 4.9 in. |
| Weight | 21.6 lb. |
