Champion’s Truck/SUV winch kit with cover has a 11,000-lb. rated line pull, a gear reduction ratio of 216:1, plus a Speed Mount hitch adapter to make your experience with this winch even easier. With a tough 3.6-horsepower (12-volt) DC motor, this is your perfect heavy-duty tool.
Features
Powerful
11,000-lb. rated line pull powered by a 3.6-horsepower (12-volt) DC series wound motor
Efficient
Line speed of 3 feet per minute with a full load, and 15.7 feet per minute with no load
Convenient
Speed Mount 2-inch hitch adapter, included hand-held quick-connect remote control, 6-foot battery lead cables and roller fairlead create an easier than ever winching experience
Hassle-Free
The roller fairlead creates a safe and smooth pull with the 85-foot super-duty aircraft cable, plus the included snatch block can aid in angled pulls and increase winching power
Reliable
Champion Support includes 2-year limited warranty with FREE lifetime technical support from dedicated experts
Description

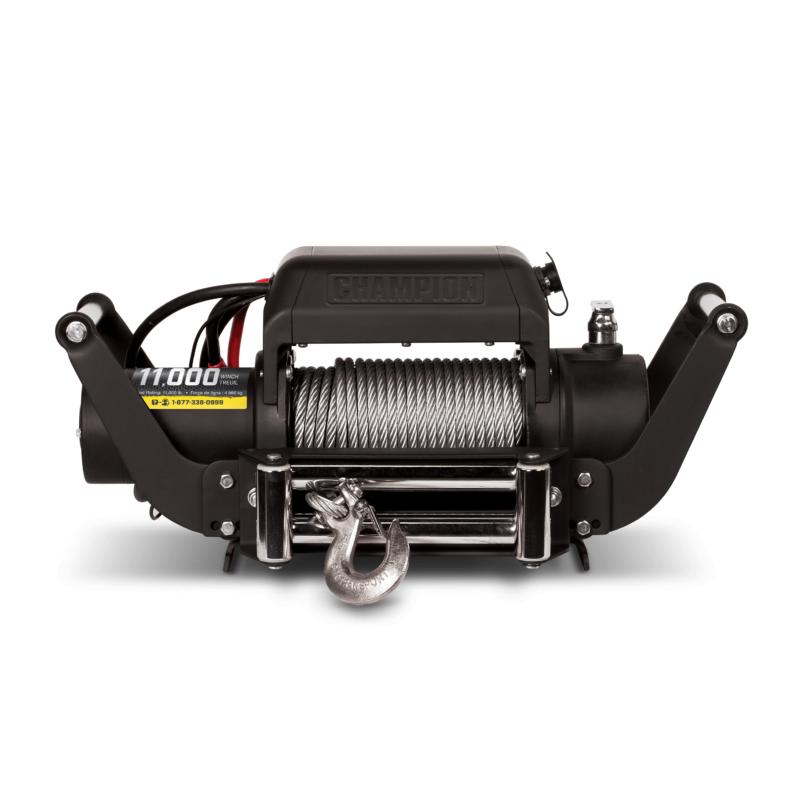

The Champion Power Equipment 100139 11,000-lb. Truck/SUV Winch Kit with a 3.6-horsepower (12-volt) DC series wound motor is designed for powerful and reliable winching with your truck or SUV.
With a gear reduction ratio of 216:1, this winch boasts a line speed of 3 feet per minute with a full load, and 15.7 feet per minute with no load.
The 85-foot by ⅜-inch galvanized, super-duty aircraft cable is less prone to fraying, even when used in highly abrasive terrain, such as in rocks, mud, or sand. This incredibly strong cable is guided onto the 2.5 by 8.8-inch drum through the reliable roller fairlead to maximize the life of the cable.
The efficient three-stage planetary gear system, dynamic braking system and free spooling clutch along with the hand-held quick-connect remote control and 12-foot cable offer excellent control while winching. The included snatch block can be used to increase winching power or to aid in angled pulls.
With a rated line pull of 11,000 pounds, this winch installs quickly with our Speed Mount 2-inch hitch adapter, which features convenient 3-position adjustable handles that also serve as side guards to protect your winch. The Speed Mount hitch adapter is designed for quick and easy mounting, transportation and storage.

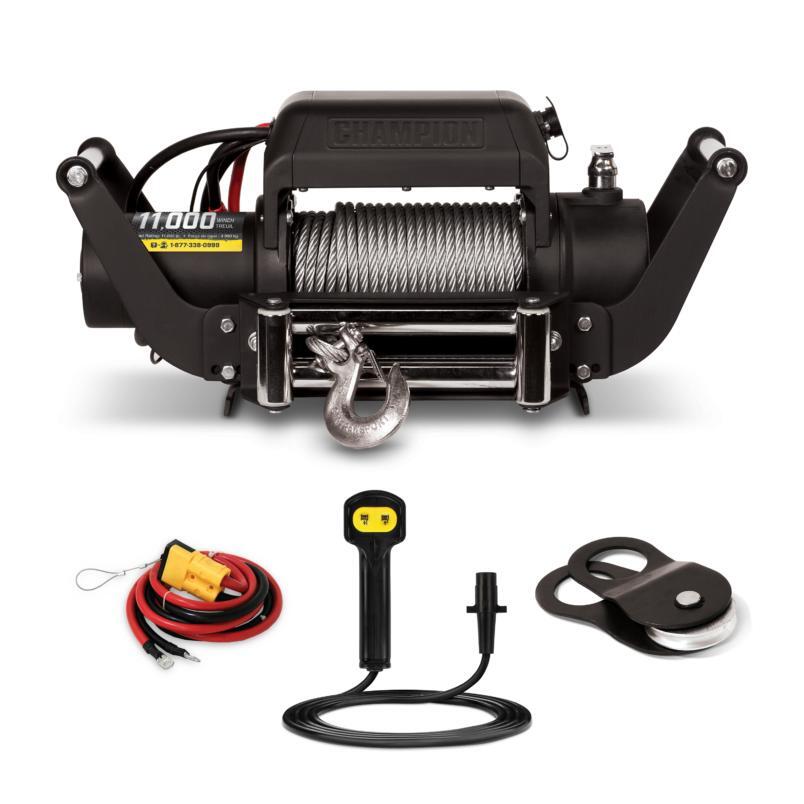

To ensure you’ll have everything you need to start winching, in addition to the Speed Mount hitch adapter, you’ll also receive a roller fairlead, a hand-held quick-connect remote control, a snatch block and 6-foot battery lead cables.
Champion Support and our nationwide network of service centers will back up your purchase with a 2-year limited warranty and FREE lifetime technical support.
What’s included
- Clevis Hook
- Hook Strap
- Speed Mount Hitch Adapter (2 in.)
- Roller Fairlead
- Remote Control
- Snatch Block
- Battery Leads
Specifications
| Winch Type | Truck and SUV |
|---|---|
| Line Pull | 11000 lb. |
| Remote Length | 12 ft. |
| Gear Ratio | 216:1 |
| Gear System | Three-Stage Planetary |
| Full Load Line Speed | 3 ft/min |
| No-Load Line Speed | 15.7 ft/min |
| Clutch Type | Free Spooling |
| Brake System | Dynamic |
| Rope Material | Galvanized Steel |
| Rope Length | 85 ft. |
| Rope Diameter | 3/8 in. |
| Fairlead Type | 4-Way Roller |
| Drum Size | 2.5 x 8.8 in. |
| Bolt Pattern | 10 x 4.5 in. |
| Mounting Channel | Speed Mount |
| Hitch Adapter Size | 2 in. |
| Motor Type | 12V DC (Series Wound) |
| Horsepower | 3.6 hp |
| Max Current at Full Load | 420A |
| Duty Cycle | Intermittent |
Dimensions
| Length | 21.9 in. |
|---|---|
| Width | 5.6 in. |
| Height | 10.5 in. |
| Weight | 114.6 lb. |
